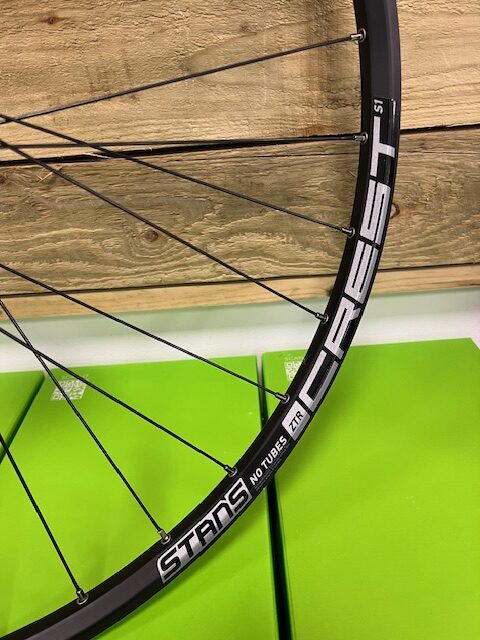

Stans ZTR Crest S1 XD rear wheel 148

Stans ZTR Crest S1 XD rear wheel 148

Building off the success of the Crest MK3, the Crest S1 aims to provide the same great ride with an emphasis on value and durability. This new Crest has been designed according to Stan’s WideRight rim and tire fit system, with a rim profile optimized for 2.00” - 2.25” tires. The result is increased tire volume for improved stability with wider tires. With a 32-hole front and rear spoke count, 6061 alloys eyeleted rims, and easily replaceable standard spokes, the Crest S1 has been engineered to withstand the toughest of riding. Combined with faster-engaging, CNC-machined Neo hubs available in configurations to fit nearly any bike. The search for a fast XC wheelset built for a long life ends with the Crest S1.

Key Features:

• Durable and lightweight aluminium construction
• Wider rim width for more stability with larger tyres
• 23mm internal rim width for 38mm gravel to 2.25" XC tires

Specifications:

• Rim Internal Width: 23.0mm
• Rim External Width: 26.6mm
• Rim Depth: 17.2mm
• Spokes: Sapim Race Black 2.0/1.8/2.0mm
• Nipples: Secure Lock Brass Silver Nipples
• Hub: Neo with Durasync
• Hole Count: 32-hole
• Rim Material: 6061 Alloy
• Brakes: Disc
• Valve: 35mm Presta
• Rim Weight: 433g
• Rear Wheel Weight: 961g
• ERD: 604mm
• ETRTO: 622x23
• ISO: 29"x26.6mm
• Tape: 25mm
• Max Spoke Tension: 125kgf (1225N)
• Max Rider Weight: 190lbs (86kilos)
• Max Pressure with 38c Tyre: 60psi
• Max Pressure with 2.00" Tyre: 40psi
• Max Pressure with 2.30" Tyre: 38psi
